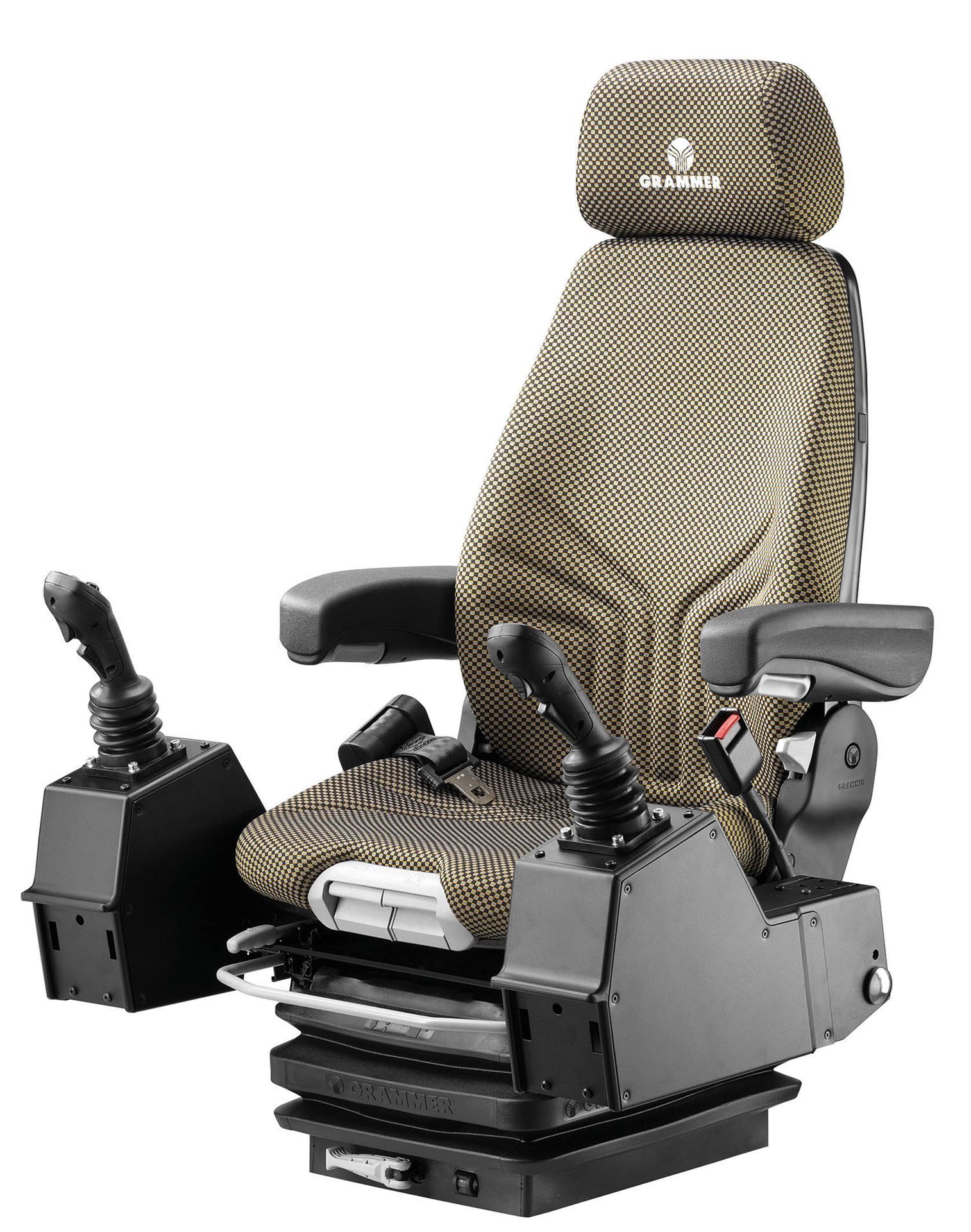

Actimo M Seat w/ Control Pods - MSG85/722

Manufacturer: Grammer
SKU: 1294548
Premium mechanical suspension seat for all variants of construction machinery, complete with control pods for mounting the vehicle controls.

This seat is easy to set to the user’s weight using a crank at the front, which is essential for optimising the mechanical suspensions response to vibrations. The seat height can also be set to any of three positions over 60mm depending on the operator’s size and the type of work being done.
Enquire for spart parts

Grammer Actimo M with Control Pods

The mechanically suspended comfort seat for large construction machinery. Seats come complete with control pods to mount in vehicle controls. This seat is easy to set to the user’s weight using a crank at the front, which is essential for optimising the mechanical suspensions response to vibrations. The seat height can also be set to any of three positions over 60mm depending on the operator’s size and the type of work being done.

Specifications:

  • Mechanical suspension
  • Non-adjustable shock absorber
  • 100mm vertical suspension stroke
  • Mechanical weight adjustment 50-130kg
  • Mechanical height adjustment - 60mm
  • Fore & aft adjustment - 210mm
  • Control pods
  • Forward-mounted controls
  • Mechanical lumbar support
  • Adjustable backrest angle
  • Adjustable seat cushion depth and angle
  • 490mm seat cushion width
  • Available in fabric or PVC

Accessories:

  • 180° or 360° turntable
  • Height-adjustable armrests
  • Retractable seatbelt
  • Seat heating
  • Operator presence switch
  • Headrest
  • Document box





*
*
*
Description

Grammer Actimo M with Control Pods

The mechanically suspended comfort seat for large construction machinery. Seats come complete with control pods to mount in vehicle controls. This seat is easy to set to the user’s weight using a crank at the front, which is essential for optimising the mechanical suspensions response to vibrations. The seat height can also be set to any of three positions over 60mm depending on the operator’s size and the type of work being done.

Specifications:

  • Mechanical suspension
  • Non-adjustable shock absorber
  • 100mm vertical suspension stroke
  • Mechanical weight adjustment 50-130kg
  • Mechanical height adjustment - 60mm
  • Fore & aft adjustment - 210mm
  • Control pods
  • Forward-mounted controls
  • Mechanical lumbar support
  • Adjustable backrest angle
  • Adjustable seat cushion depth and angle
  • 490mm seat cushion width
  • Available in fabric or PVC

Accessories:

  • 180° or 360° turntable
  • Height-adjustable armrests
  • Retractable seatbelt
  • Seat heating
  • Operator presence switch
  • Headrest
  • Document box
