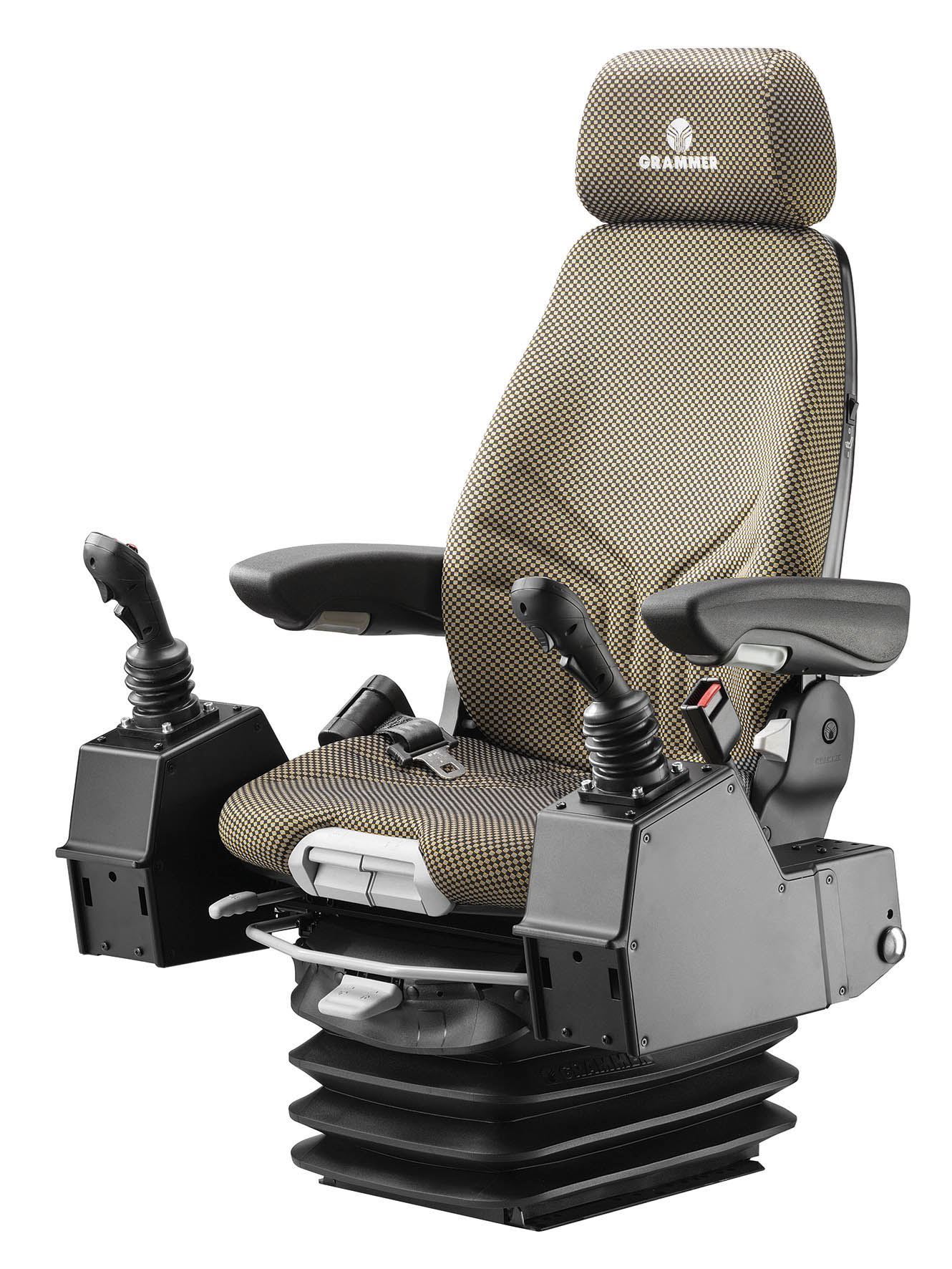

Actimo XL Seat w/ Control Pods - MSG95A/722

Manufacturer: Grammer
SKU: 1294570
Premium air suspension seat for all variants of construction machinery, complete with control pods for mounting the vehicle controls.

The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seats comfort.
Downloads
Enquire for spart parts

Grammer Actimo XL with Control Pods

The high-comfort seat for large construction machinery. The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seats comfort. Experience and use operating comfort with optimum ergonomical user guidance.

Seats come complete with control pods to mount in vehicle controls.

Specifications:

  • Air suspension (12V compressor)
  • APS (Automatic Positioning System)
  • Adjustable shock absorber
  • 100mm vertical suspension stroke
  • Automatic weight adjustment 50-130kg
  • Pneumatic height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Fore & aft isolator
  • Control pods
  • Forward-mounted controls
  • Passive climate system
  • Pneumatic lumbar support
  • Adjustable backrest angle
  • Adjustable seat cushion depth and angle
  • 490mm seat cushion width

Accessories:

  • Control pod adapters
  • 180° or 360° turntable
  • Height-adjustable armrests
  • Retractable seatbelt
  • Seat heating
  • Operator presence switch
  • Headrest
  • Document box





*
*
*
Description

Grammer Actimo XL with Control Pods

The high-comfort seat for large construction machinery. The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seats comfort. Experience and use operating comfort with optimum ergonomical user guidance.

Seats come complete with control pods to mount in vehicle controls.

Specifications:

  • Air suspension (12V compressor)
  • APS (Automatic Positioning System)
  • Adjustable shock absorber
  • 100mm vertical suspension stroke
  • Automatic weight adjustment 50-130kg
  • Pneumatic height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Fore & aft isolator
  • Control pods
  • Forward-mounted controls
  • Passive climate system
  • Pneumatic lumbar support
  • Adjustable backrest angle
  • Adjustable seat cushion depth and angle
  • 490mm seat cushion width

Accessories:

  • Control pod adapters
  • 180° or 360° turntable
  • Height-adjustable armrests
  • Retractable seatbelt
  • Seat heating
  • Operator presence switch
  • Headrest
  • Document box
