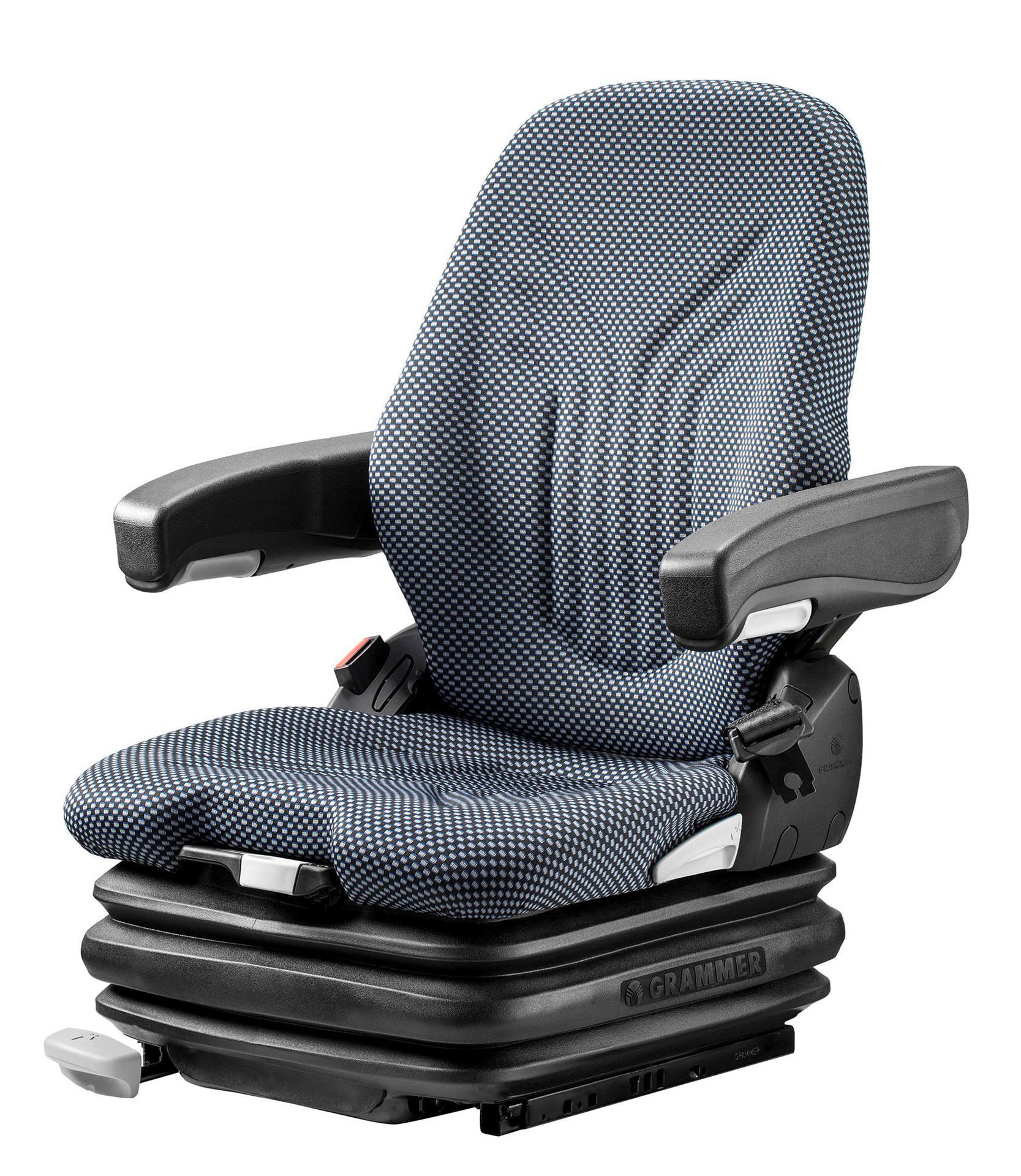

Primo XXL Seat - MSG75G/522

Manufacturer: Grammer
SKU: 1293476
Premium low-profile air suspension seat suitable for light construction and material handling machinery, complete with high backrest for additional support.

The broad, ergonomic seat cushions and the height and angle adjustable armrests optimally support the body, and the backrest angle is adjustable from -5° to +30°.
Enquire for spart parts

Grammer Primo XXL

Sitting comfort in new dimensions for forklift trucks and compact construction machines. The Primo is a worldwide unique, innovative seating concept. It is the first seat for forklift trucks and construction machines with a low-profile suspension, optionally available with pneumatic or mechanical suspension, and quick weight adjustment. The broad, ergonomic seat cushions and the height and angle adjustable armrests optimally support the body, and the backrest angle is adjustable from -5° to +30°. As the worldwide first low-profile compact seat the Primo is equipped with a lumbar support for the sensitive lumbar region.

Specifications:

  • Air suspension (12V compressor)
  • Non-adjustable shock absorber
  • 110mm suspension stroke
  • Electropneumatic quick weight adjustment - 45-170kg
  • 210mm fore & aft adjustment
  • Mechanical lumbar support
  • Adjustable backrest angle -5 to +30°
  • Duo-sensitive retractable belt
  • 450mm seat cushion width
  • Operator presence switch

Accessories:

  • Armrests
  • Seat heating
  • Document box





*
*
*
Description

Grammer Primo XXL

Sitting comfort in new dimensions for forklift trucks and compact construction machines. The Primo is a worldwide unique, innovative seating concept. It is the first seat for forklift trucks and construction machines with a low-profile suspension, optionally available with pneumatic or mechanical suspension, and quick weight adjustment. The broad, ergonomic seat cushions and the height and angle adjustable armrests optimally support the body, and the backrest angle is adjustable from -5° to +30°. As the worldwide first low-profile compact seat the Primo is equipped with a lumbar support for the sensitive lumbar region.

Specifications:

  • Air suspension (12V compressor)
  • Non-adjustable shock absorber
  • 110mm suspension stroke
  • Electropneumatic quick weight adjustment - 45-170kg
  • 210mm fore & aft adjustment
  • Mechanical lumbar support
  • Adjustable backrest angle -5 to +30°
  • Duo-sensitive retractable belt
  • 450mm seat cushion width
  • Operator presence switch

Accessories:

  • Armrests
  • Seat heating
  • Document box
