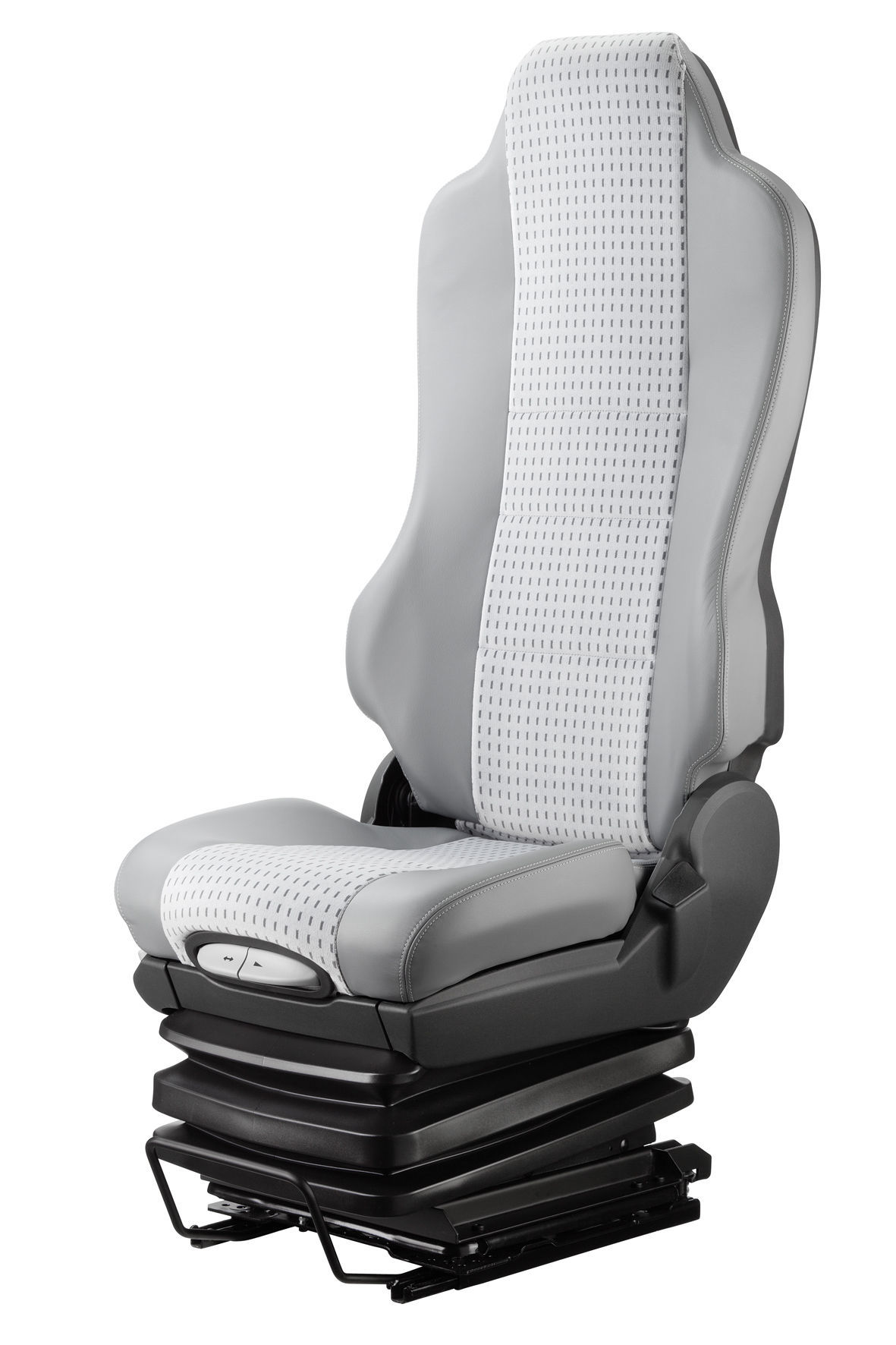

MSG90.6 Seat

Manufacturer: Grammer
SKU: 1291746
Premium air suspension drivers seat for rail applications.

An innovative, friction-optimised suspension system based on leading-edge shock absorption and control technology delivers greater strength and stiffness for a longer service life and outstanding comfort.
Enquire for spart parts

Grammer MSG 90.6

Optimum seat ergonomics crucially improves working conditions and help preserve users' health. An example of such an ergonomically mature product is the Grammer MSG 90.6 Comfort seat, which has been certified by an independent institute, Landesgewerbeanstalt (LGA) in Nuremberg, Germany in cooperation with Ergonomie Institut München (EIM). The seat was examined to determine whether its dimensions and adjustment possibilities can accommodate the anthropometric attributes of different users (tall, short, slender, corpulent etc). Its ease of use and vibration comfort were also thoroughly tested. As a result, the seat was certified as "ergonomically tested".

An innovative, friction-optimised suspension system based on leading-edge shock absorption and control technology delivers greater strength and stiffness for a longer service life and outstanding comfort.

Specifications:

  • Pneumatic air suspension with manual valve
  • Automatic weight adjustment and seat height positioning
  • 100mm height adjustment
  • 70mm vertical suspension stroke
  • Automatic weight adjustment 50-130kg
  • Adjustable shock absorber
  • 210mm fore & aft adjustment
  • Fore & aft isolator
  • Adjustable backrest: 15° to 50°
  • Adjustable seat base tilt: -4° to +6°
  • 60mm Adjustable seat cushion length
  • Integrated headrest (long backrest option) or detachable headrest (short backrest option)
  • Pneumatic lumbar support
  • Infinitely adjustable pneumatic side support
  • Seat rotation: -120° to +120°
  • High-comfort foldable armrests
  • Fire protection in compliance with DIN, EN and GOST


Optional Features:

  • Longer/wider high-comfort foldable armrests
  • Integrated 3-point seat belt
  • Lateral suspension





*
*
*
Description

Grammer MSG 90.6

Optimum seat ergonomics crucially improves working conditions and help preserve users' health. An example of such an ergonomically mature product is the Grammer MSG 90.6 Comfort seat, which has been certified by an independent institute, Landesgewerbeanstalt (LGA) in Nuremberg, Germany in cooperation with Ergonomie Institut München (EIM). The seat was examined to determine whether its dimensions and adjustment possibilities can accommodate the anthropometric attributes of different users (tall, short, slender, corpulent etc). Its ease of use and vibration comfort were also thoroughly tested. As a result, the seat was certified as "ergonomically tested".

An innovative, friction-optimised suspension system based on leading-edge shock absorption and control technology delivers greater strength and stiffness for a longer service life and outstanding comfort.

Specifications:

  • Pneumatic air suspension with manual valve
  • Automatic weight adjustment and seat height positioning
  • 100mm height adjustment
  • 70mm vertical suspension stroke
  • Automatic weight adjustment 50-130kg
  • Adjustable shock absorber
  • 210mm fore & aft adjustment
  • Fore & aft isolator
  • Adjustable backrest: 15° to 50°
  • Adjustable seat base tilt: -4° to +6°
  • 60mm Adjustable seat cushion length
  • Integrated headrest (long backrest option) or detachable headrest (short backrest option)
  • Pneumatic lumbar support
  • Infinitely adjustable pneumatic side support
  • Seat rotation: -120° to +120°
  • High-comfort foldable armrests
  • Fire protection in compliance with DIN, EN and GOST


Optional Features:

  • Longer/wider high-comfort foldable armrests
  • Integrated 3-point seat belt
  • Lateral suspension
