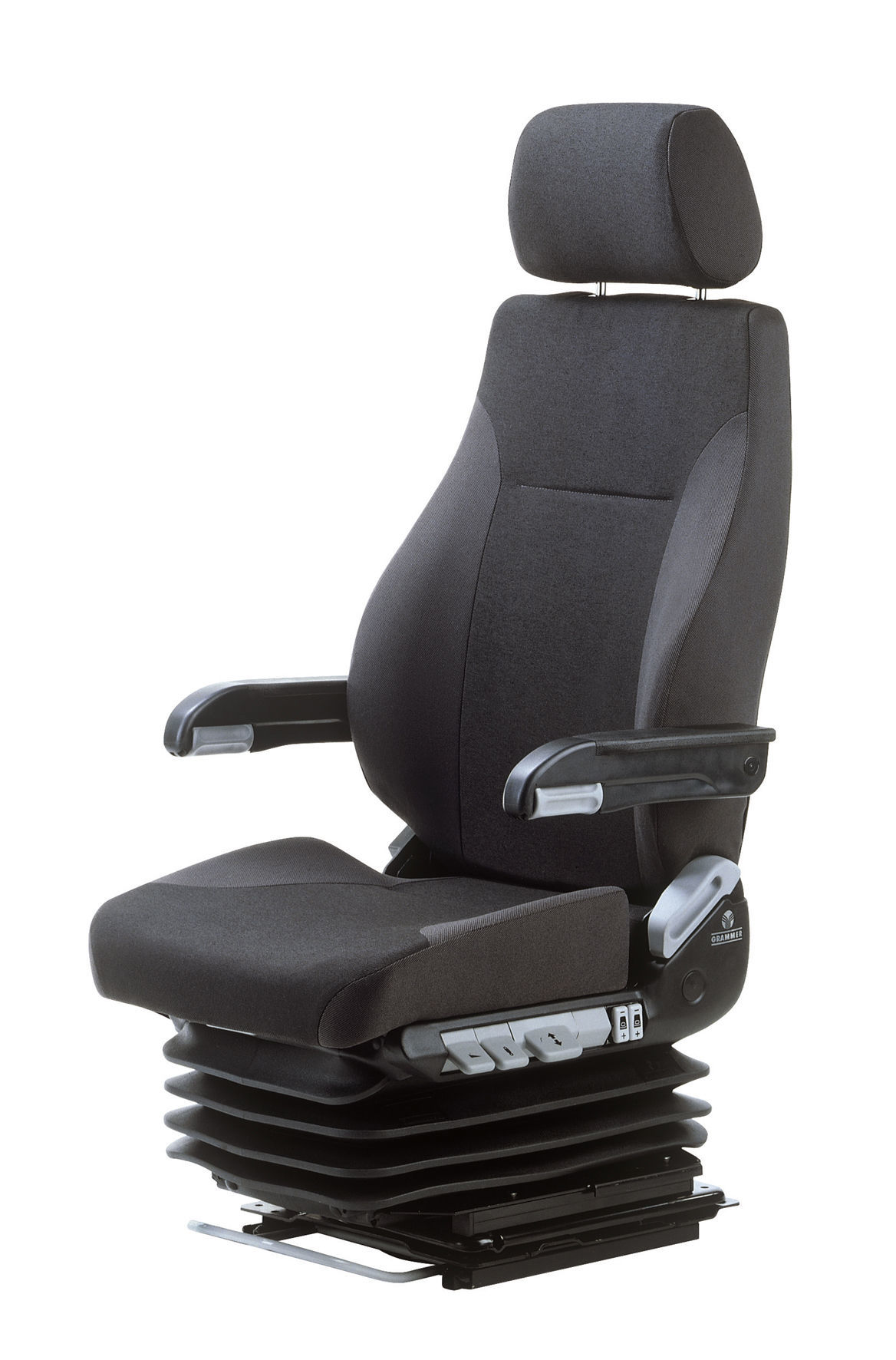

MSG90.3 Seat

Manufacturer: Grammer
SKU: 1031054
Comprehensive air suspension drivers seat for rail applications.

Ergonomically shaped cushions to meet all of modern workplace requirements. Pneumatic lumbar support with two independent air chambers, infinite height and depth adjustment. Adjustable seat cushion length to ease strain on the thighs.
Enquire for spart parts

Grammer MSG 90.3

The MSG 90.3 locomotive driver’s seat with pneumatic suspension from Grammer is equipped with an anti-sinking mechanism - regardless of the driver’s weight, the seat automatically returns to the originally set height. A rotating mount lets the driver quickly turn the seat for easy operation of the cockpit controls.

Ergonomically shaped cushions to meet all of modern workplace requirements. Pneumatic lumbar support with two independent air chambers, infinite height and depth adjustment. Adjustable seat cushion length to ease strain on the thighs.

Specifications:

  • Pneumatic air suspension with manual valve
  • Automatic weight adjustment and seat height positioning
  • 100mm height adjustment
  • 100mm vertical suspension stroke
  • Automatic weight adjustment 50-130kg
  • 210mm fore & aft adjustment
  • Adjustable backrest: 10° to 70°
  • Adjustable seat base tilt: -4° to +6°
  • 60mm Adjustable seat cushion length
  • Detachable headrest
  • Pneumatic lumbar support
  • Seat rotation: -120° to +120°
  • High-comfort foldable armrests
  • Fire protection in compliance with DIN, EN and GOST


Optional Features:

  • Longer/wider high-comfort foldable armrests





*
*
*
