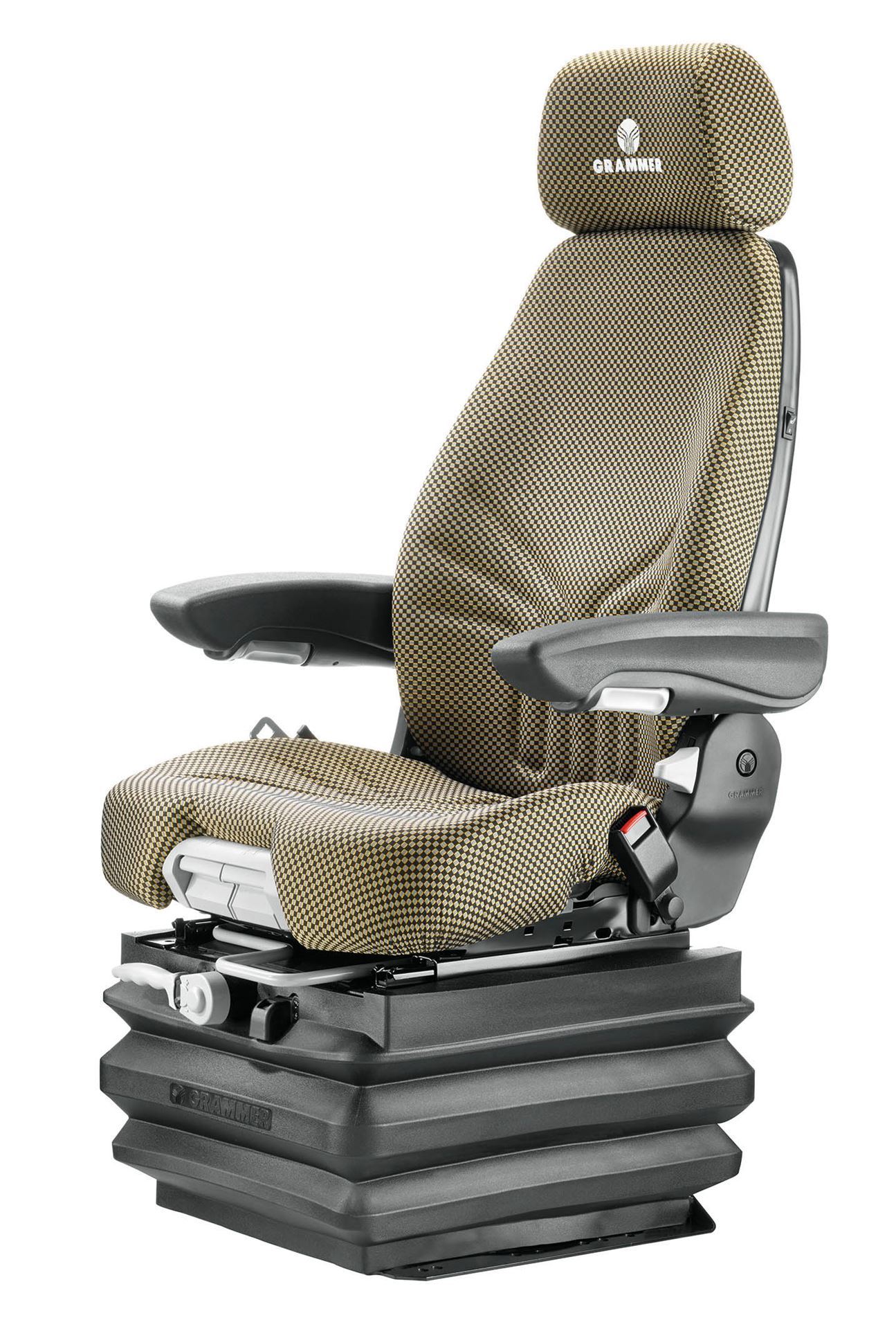

Actimo XXM Seat - MSG87/742

Manufacturer: Grammer
SKU: 1310555
Premium heavy-duty mechanical suspension seat for all variants of construction machinery. High weight range for extreme working conditions.

Thanks to its extra-wide suspension, the Actimo XXM is predestined for use in large, heavy machines. In conjunction with the upper seat section, the mechanically adjustable suspension can reliably support large multifunction armrests and heavy attachments while continuing to deliver good comfort under even the roughest work conditions.
Enquire for spart parts

Grammer Actimo XXM

Thanks to its extra-wide suspension, the Actimo XXM is predestined for use in large, heavy machines. In conjunction with the upper seat section, the mechanically adjustable suspension can reliably support large multifunction armrests and heavy attachments while continuing to deliver good comfort under even the roughest work conditions. A combined weight and height adjustment mechanism makes it easy to optimally set the seat to the operator’s weight using a ratcheting handle.

With a weight rating of up to 180kg, it is also ideally suited for the larger driver, even when working in the most extreme of conditions.

Specifications:

  • Heavy-duty, extra-wide mechanical suspension
  • Non-adjustable shock absorber
  • 80mm vertical suspension stroke
  • Mechanical weight adjustment 50-180kg
  • Mechanical height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Forward-mounted controls
  • Mechanical lumbar support
  • Adjustable backrest angle
  • Adjustable seat cushion depth and angle
  • Extra-wide 550mm seat cushion width
  • Available in fabric or PVC


Accessories:

  • Height-adjustable armrests
  • Retractable seatbelt
  • Seat heating
  • Lateral suspension
  • Operator presence switch
  • Headrest
  • Document box





*
*
*
Description

Grammer Actimo XXM

Thanks to its extra-wide suspension, the Actimo XXM is predestined for use in large, heavy machines. In conjunction with the upper seat section, the mechanically adjustable suspension can reliably support large multifunction armrests and heavy attachments while continuing to deliver good comfort under even the roughest work conditions. A combined weight and height adjustment mechanism makes it easy to optimally set the seat to the operator’s weight using a ratcheting handle.

With a weight rating of up to 180kg, it is also ideally suited for the larger driver, even when working in the most extreme of conditions.

Specifications:

  • Heavy-duty, extra-wide mechanical suspension
  • Non-adjustable shock absorber
  • 80mm vertical suspension stroke
  • Mechanical weight adjustment 50-180kg
  • Mechanical height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Forward-mounted controls
  • Mechanical lumbar support
  • Adjustable backrest angle
  • Adjustable seat cushion depth and angle
  • Extra-wide 550mm seat cushion width
  • Available in fabric or PVC


Accessories:

  • Height-adjustable armrests
  • Retractable seatbelt
  • Seat heating
  • Lateral suspension
  • Operator presence switch
  • Headrest
  • Document box
