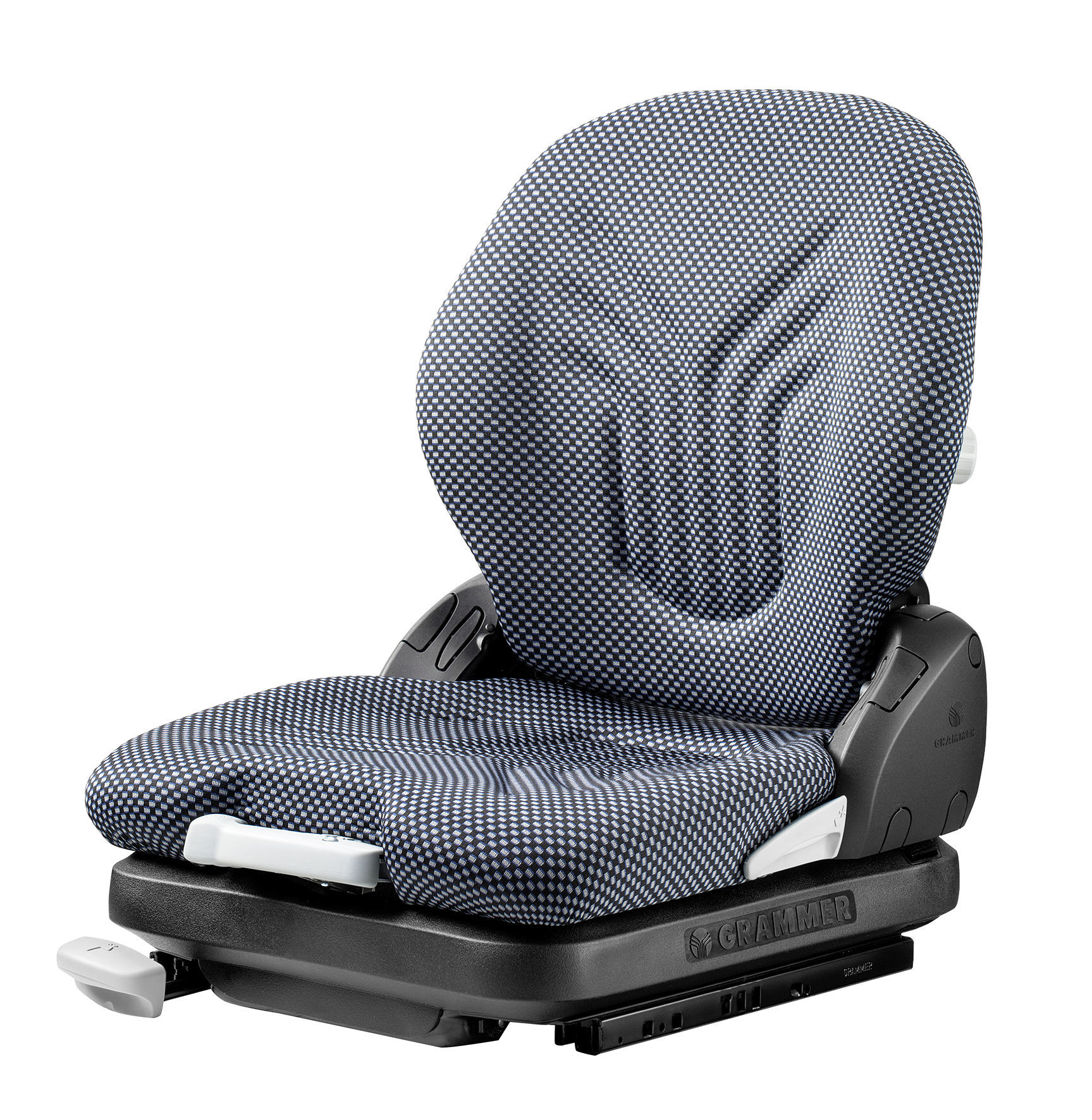

Primo M Seat - MSG65/521

Manufacturer: Grammer
SKU: 1091028 / 1293486
Premium low-profile mechanical suspension seat for light plant and material handling machinery.

The broad, ergonomic seat cushions and the height and angle adjustable armrests optimally support the body, and the backrest angle is adjustable from -5° to +30°.
Enquire for spart parts

Grammer Primo M

Sitting comfort in new dimensions for forklift trucks and compact construction machines, the Primo is a worldwide unique, innovative seating concept. It is the first seat for forklift trucks and construction machines with a low-profile suspension, optionally available with pneumatic or mechanical suspension and quick weight adjustment. The broad, ergonomic seat cushions and the height and angle adjustable armrests optimally support the body, and the backrest angle is adjustable from -5° to +30°. As the worldwide first low-profile compact seat the Primo is equipped with a lumbar support for the sensitive lumbar region.

Specifications:

  • Mechanical suspension
  • Non-adjustable shock absorber
  • 60mm suspension stroke
  • Mechanical quick weight adjustment - 45-170kg
  • 210mm fore & aft adjustment
  • Mechanical lumbar support
  • Adjustable backrest angle -5 to +30°
  • 450mm seat cushion width

Accessories:

  • Static or duo-sensitive retractable belt
  • Armrests
  • Insertable backrest extension
  • Seat heating
  • Operator presence switch
  • Document box





*
*
*
Description

Grammer Primo M

Sitting comfort in new dimensions for forklift trucks and compact construction machines, the Primo is a worldwide unique, innovative seating concept. It is the first seat for forklift trucks and construction machines with a low-profile suspension, optionally available with pneumatic or mechanical suspension and quick weight adjustment. The broad, ergonomic seat cushions and the height and angle adjustable armrests optimally support the body, and the backrest angle is adjustable from -5° to +30°. As the worldwide first low-profile compact seat the Primo is equipped with a lumbar support for the sensitive lumbar region.

Specifications:

  • Mechanical suspension
  • Non-adjustable shock absorber
  • 60mm suspension stroke
  • Mechanical quick weight adjustment - 45-170kg
  • 210mm fore & aft adjustment
  • Mechanical lumbar support
  • Adjustable backrest angle -5 to +30°
  • 450mm seat cushion width

Accessories:

  • Static or duo-sensitive retractable belt
  • Armrests
  • Insertable backrest extension
  • Seat heating
  • Operator presence switch
  • Document box
