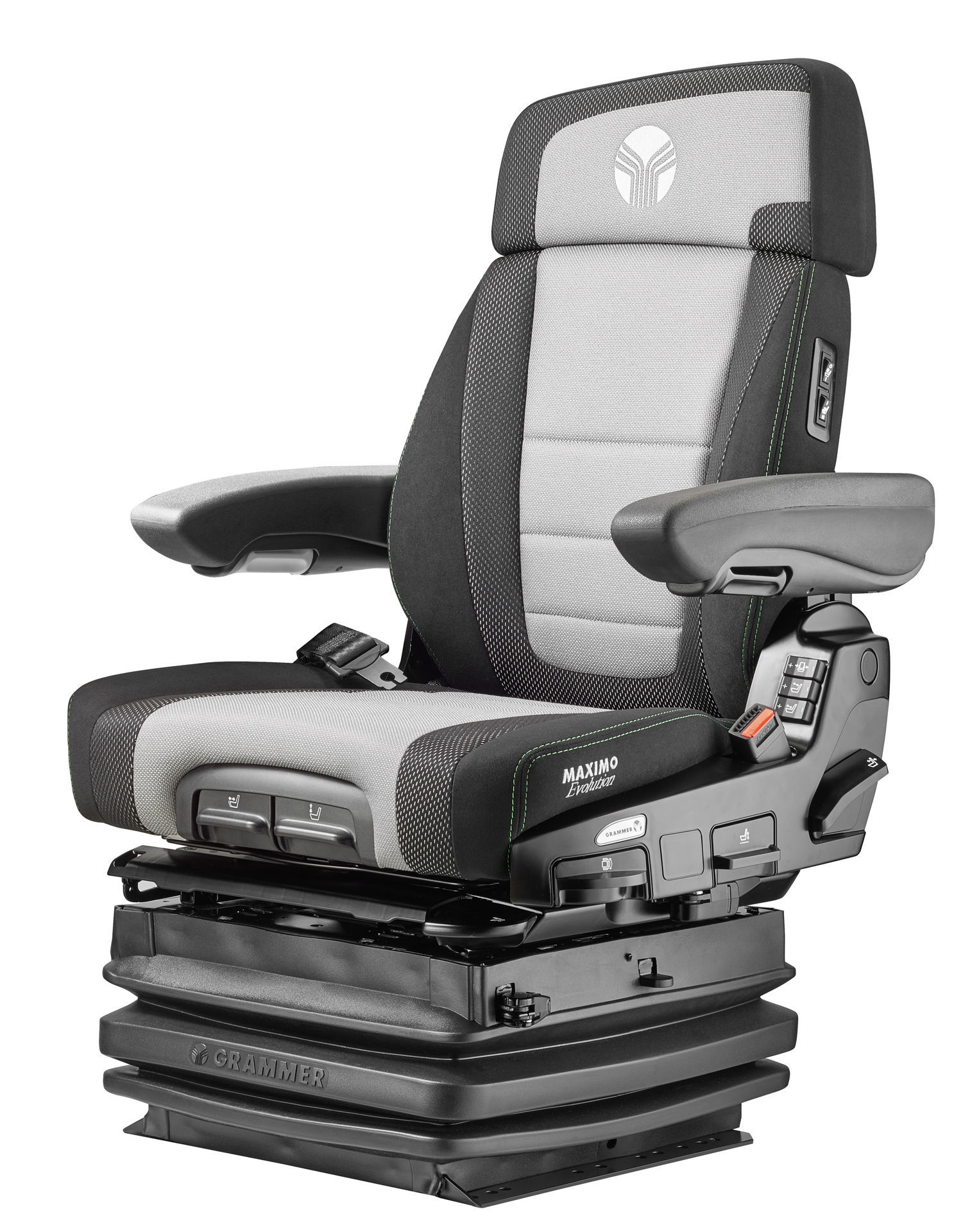

Maximo XT Evolution Dynamic Seat - MSG95EL/741

Manufacturer: Grammer
SKU: 1388488
Top of the range air suspension seat for all variants of agricultural machinery, complete with dynamic damping system for unrivalled vibration asorption.

Sensors and electronics for active weight adjustment are applied in a tractor seat for the first time. The fully automatic adjustment to the driver’s weight guarantees relaxed and healthy sitting whilst at work. The Maximo XT Evolution Dynamic offers an optional console for the mounting of a multi-functional armrest or vehicle's control arm.
Enquire for spart parts

Grammer Maximo XT Evolution Dynamic

Maximum sitting comfort for tractors of medium and heavy weight. The Maximo XT Evolution Dynamic is equipped with an active seat climatisation, which carries away the body perspiration. The driver sits pleasantly tempered with dry back and bottom. Sensors and electronics for active weight adjustment are applied in a tractor seat for the first time. The fully automatic adjustment to the driver’s weight guarantees relaxed and healthy sitting whilst at work. Easy to handle: The Maximo XT Evolution Dynamic convinces by its user-friendly design. The operating elements communicate their function and operating direction to the user by their form. All handles are located in such a way to be found intuitively. The seat can be brought into the individual ergonomic sitting position without any previous knowledge.

The Maximo XT Evolution Dynamic offers an optional console for the mounting of a multi-functional armrest or vehicle's control arm. The upper backrest section rotates as the user twists around, thus continuing to provide back support and enabling the best possible view when it is necessary to work in a backward-facing position.

Specifications:

  • Dynamic damping air suspension system (12V compressor)
  • Electronically automatic seat positioning system
  • 120mm vertical suspension stroke
  • Weight adjustment 50-130kg
  • Automatic shock absorber
  • Air assisted height adjustment - 80mm
  • Electronic weight adjustment
  • Horizontal suspension
  • Lateral suspension
  • Fore and aft isolator
  • Adjustable damper
  • Swivel - ±15°
  • Slide rail adjustment - 200mm
  • Pneumatic air lumbar support
  • Seat heating
  • Active climate system
  • Operator presence switch (OPS)
  • Retractable lap belt
  • Dualmotion backrest extension
  • Backrest angle adjustment
  • Adjustable seat cushion length & angle
  • Height adjustable and foldable armrest (LH), with fabric cover
  • Suspension cover
  • Document holder
  • Wide fabric cushions - 550mm

Accessories:

  • Height adjustable and foldable armrest (RH), with fabric cover
  • Console for multi-functional armrest







*
*
*
Description

Grammer Maximo XT Evolution Dynamic

Maximum sitting comfort for tractors of medium and heavy weight. The Maximo XT Evolution Dynamic is equipped with an active seat climatisation, which carries away the body perspiration. The driver sits pleasantly tempered with dry back and bottom. Sensors and electronics for active weight adjustment are applied in a tractor seat for the first time. The fully automatic adjustment to the driver’s weight guarantees relaxed and healthy sitting whilst at work. Easy to handle: The Maximo XT Evolution Dynamic convinces by its user-friendly design. The operating elements communicate their function and operating direction to the user by their form. All handles are located in such a way to be found intuitively. The seat can be brought into the individual ergonomic sitting position without any previous knowledge.

The Maximo XT Evolution Dynamic offers an optional console for the mounting of a multi-functional armrest or vehicle's control arm. The upper backrest section rotates as the user twists around, thus continuing to provide back support and enabling the best possible view when it is necessary to work in a backward-facing position.

Specifications:

  • Dynamic damping air suspension system (12V compressor)
  • Electronically automatic seat positioning system
  • 120mm vertical suspension stroke
  • Weight adjustment 50-130kg
  • Automatic shock absorber
  • Air assisted height adjustment - 80mm
  • Electronic weight adjustment
  • Horizontal suspension
  • Lateral suspension
  • Fore and aft isolator
  • Adjustable damper
  • Swivel - ±15°
  • Slide rail adjustment - 200mm
  • Pneumatic air lumbar support
  • Seat heating
  • Active climate system
  • Operator presence switch (OPS)
  • Retractable lap belt
  • Dualmotion backrest extension
  • Backrest angle adjustment
  • Adjustable seat cushion length & angle
  • Height adjustable and foldable armrest (LH), with fabric cover
  • Suspension cover
  • Document holder
  • Wide fabric cushions - 550mm

Accessories:

  • Height adjustable and foldable armrest (RH), with fabric cover
  • Console for multi-functional armrest
