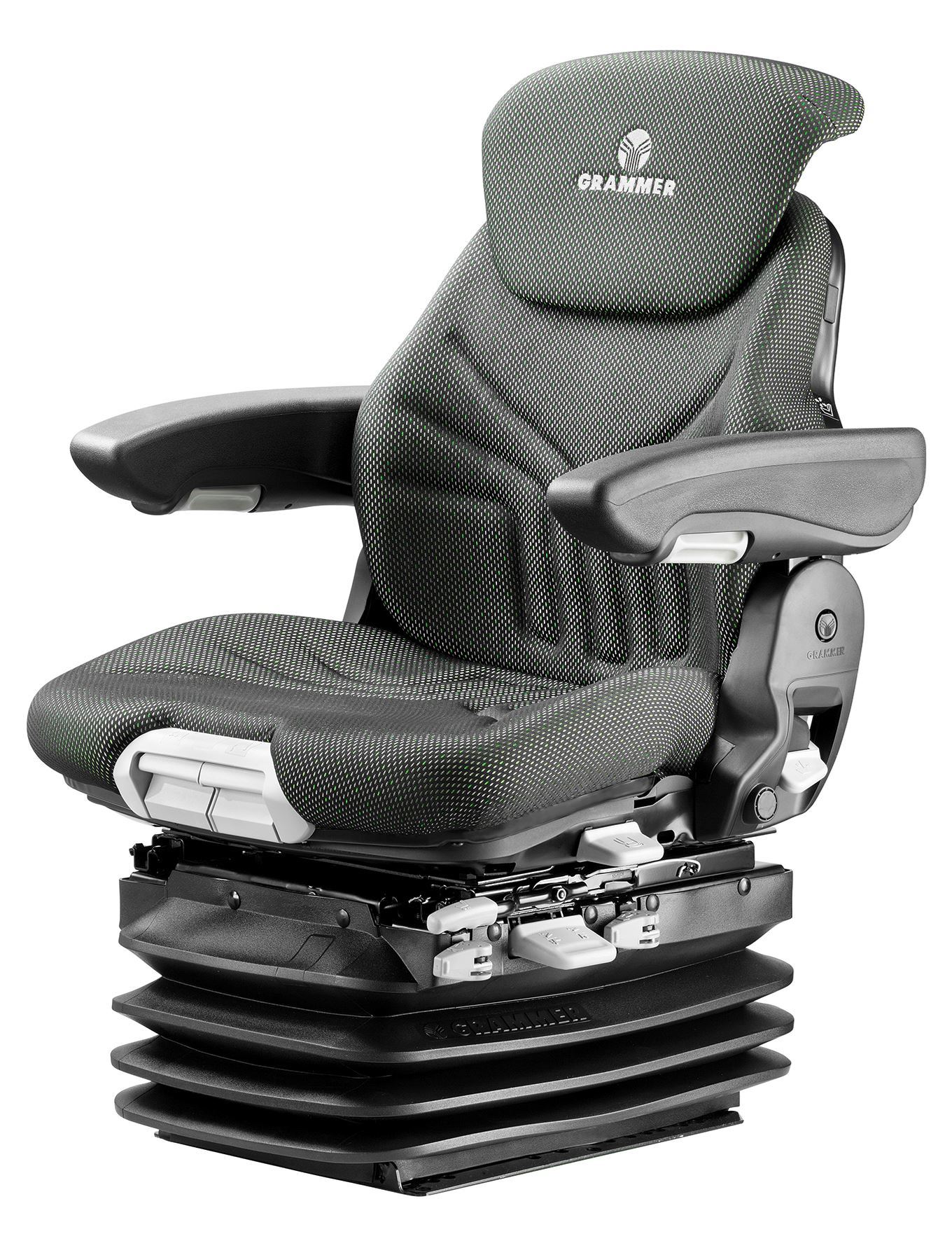

Maximo Professional Seat - MSG95AL/731

Manufacturer: Grammer
SKU: 1288547
Premium mechanical suspension seat for all variants of agricultural machinery.

Suited for medium and heavy-duty tractors. This vibration-optimized air suspension is perfectly suited for use in heavy vehicles and tractors with axle and cabin suspensions.
Enquire for spart parts

Grammer Maximo Professional

Maximo Professional with low frequency suspension. Suited for medium and heavy-duty tractors. This vibration-optimized air suspension is perfectly suited for use in heavy vehicles and tractors with axle and cabin suspensions. Because these vehicles have a low natural frequency, Grammer developed a low frequency suspension. The benefits: the low frequency suspension absorbs vertical vibrations and jolts to prevent a resonant build-up that could otherwise lead to critical states. This meets a decisive criterion; the lower the seat suspension's natural frequency, the greater the suspension comfort for the driver.

Specifications:

  • Low-frequency air suspension (12V compressor)
  • One-touch seat positioning system
  • 100mm vertical suspension stroke
  • Shock absorber
  • Air assisted height adjustment - 80mm
  • Automatic weight adjustment 50-130kg
  • Fore and aft isolator
  • Adjustable damper
  • Swivel - ±20°
  • Slide rail adjustment - 210mm
  • Mechanical lumbar support
  • Integrated backrest extension
  • Backrest angle adjustment
  • Adjustable seat cushion length & angle
  • Height adjustable and foldable armrests
  • Suspension cover
  • Wide fabric cushions - 530mm


Accessories:

  • Static or retractable lap belt
  • Horizontal suspension
  • Document holder
  • Seat heating
  • Operator presence switch (OPS)







*
*
*
Description

Grammer Maximo Professional

Maximo Professional with low frequency suspension. Suited for medium and heavy-duty tractors. This vibration-optimized air suspension is perfectly suited for use in heavy vehicles and tractors with axle and cabin suspensions. Because these vehicles have a low natural frequency, Grammer developed a low frequency suspension. The benefits: the low frequency suspension absorbs vertical vibrations and jolts to prevent a resonant build-up that could otherwise lead to critical states. This meets a decisive criterion; the lower the seat suspension's natural frequency, the greater the suspension comfort for the driver.

Specifications:

  • Low-frequency air suspension (12V compressor)
  • One-touch seat positioning system
  • 100mm vertical suspension stroke
  • Shock absorber
  • Air assisted height adjustment - 80mm
  • Automatic weight adjustment 50-130kg
  • Fore and aft isolator
  • Adjustable damper
  • Swivel - ±20°
  • Slide rail adjustment - 210mm
  • Mechanical lumbar support
  • Integrated backrest extension
  • Backrest angle adjustment
  • Adjustable seat cushion length & angle
  • Height adjustable and foldable armrests
  • Suspension cover
  • Wide fabric cushions - 530mm


Accessories:

  • Static or retractable lap belt
  • Horizontal suspension
  • Document holder
  • Seat heating
  • Operator presence switch (OPS)
