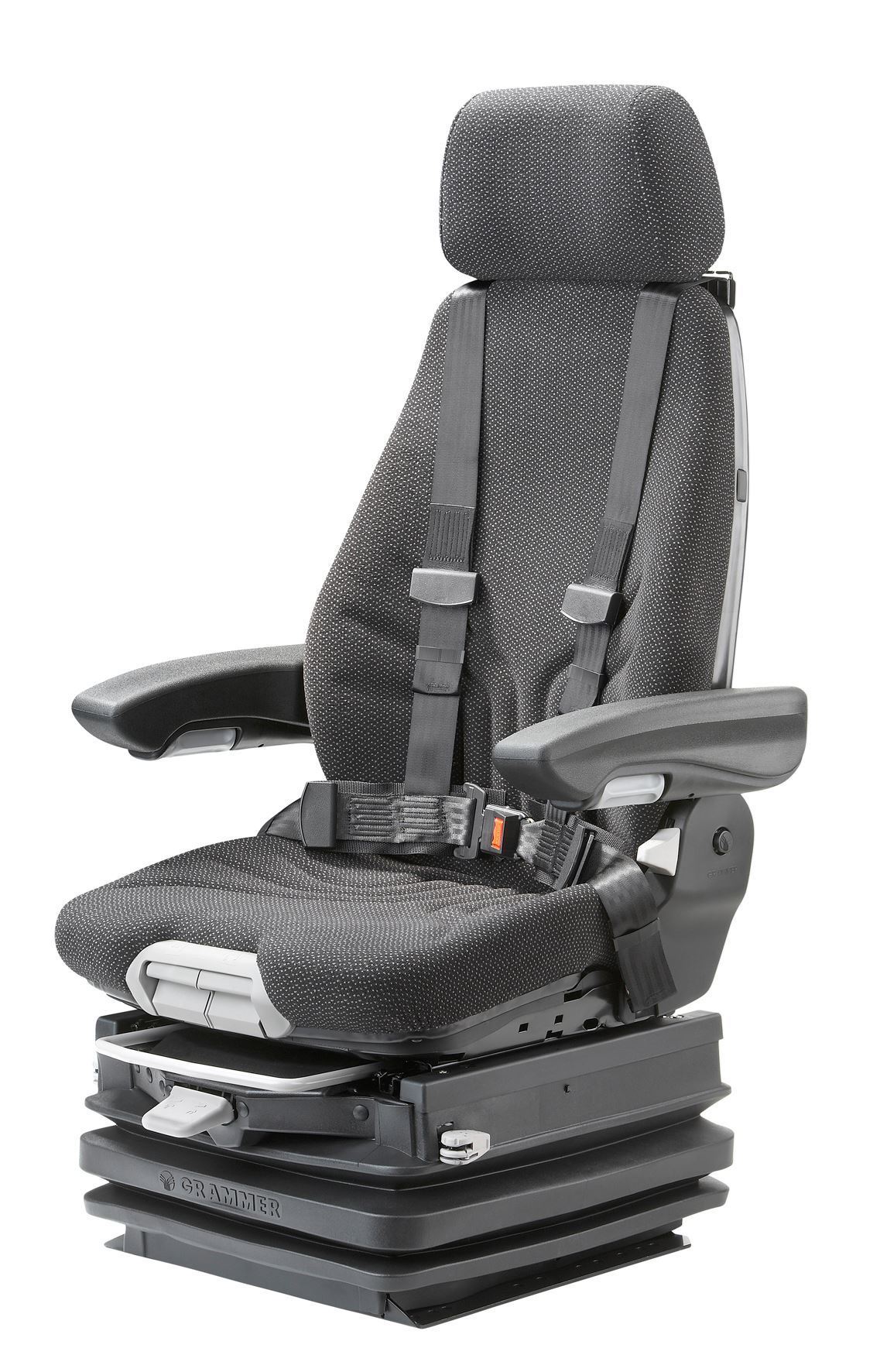

Actimo XXL Seat w/ 4-Point Harness - MSG97AL/722

Manufacturer: Grammer
SKU: 1169023
Premium air suspension seat for all variants of construction machinery, complete with integrated 4-point harness.

The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seats comfort.
Enquire for spart parts

Grammer Actimo XXL with 4-Point Harness

The high-comfort seat for large construction machinery. The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seats comfort. Experience and use operating comfort with optimum ergonomical user guidance.

Specifications:

  • Air wide suspension (24V compressor)
  • APS (Automatic Positioning System)
  • Adjustable shock absorber
  • 100mm vertical suspension stroke
  • Automatic weight adjustment 50-130kg
  • Pneumatic height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Fore & aft isolator
  • Forward-mounted controls
  • Integrated 4-point harness
  • Passive climate system
  • Pneumatic lumbar support
  • Adjustable backrest angle
  • Height-adjustable armrests
  • Headrest
  • Adjustable seat cushion depth and angle
  • 490mm seat cushion width

Accessories:

  • Control pod adapters
  • 180° or 360° turntable
  • Seat heating
  • Operator presence switch
  • Document box





*
*
*
Description

Grammer Actimo XXL with 4-Point Harness

The high-comfort seat for large construction machinery. The pneumatical suspension with APS (Automatic Positioning System) ensures that contact with the pedals remains unaffected. The integrated fore & aft isolator reduces horizontal vibrations in the driving direction. The passive climate system (active carbon layer) improve the seats comfort. Experience and use operating comfort with optimum ergonomical user guidance.

Specifications:

  • Air wide suspension (24V compressor)
  • APS (Automatic Positioning System)
  • Adjustable shock absorber
  • 100mm vertical suspension stroke
  • Automatic weight adjustment 50-130kg
  • Pneumatic height adjustment - 80mm
  • Fore & aft adjustment - 210mm
  • Fore & aft isolator
  • Forward-mounted controls
  • Integrated 4-point harness
  • Passive climate system
  • Pneumatic lumbar support
  • Adjustable backrest angle
  • Height-adjustable armrests
  • Headrest
  • Adjustable seat cushion depth and angle
  • 490mm seat cushion width

Accessories:

  • Control pod adapters
  • 180° or 360° turntable
  • Seat heating
  • Operator presence switch
  • Document box
